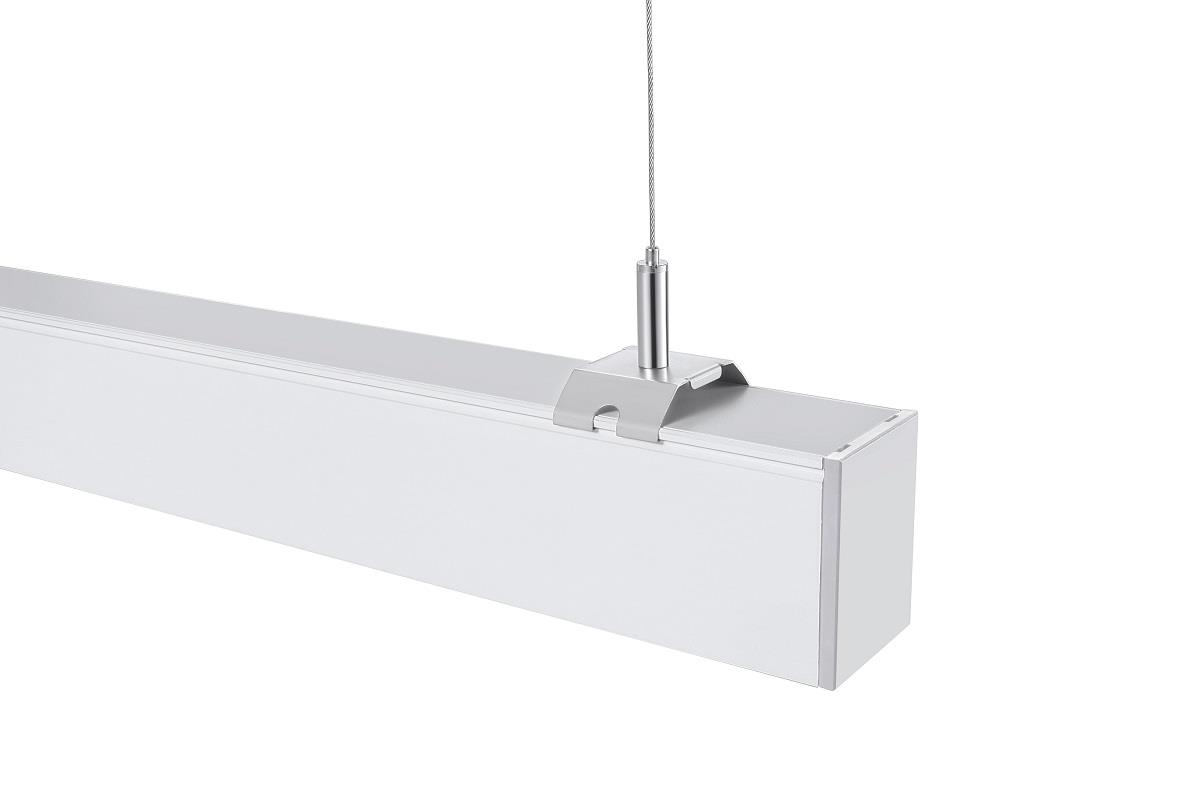

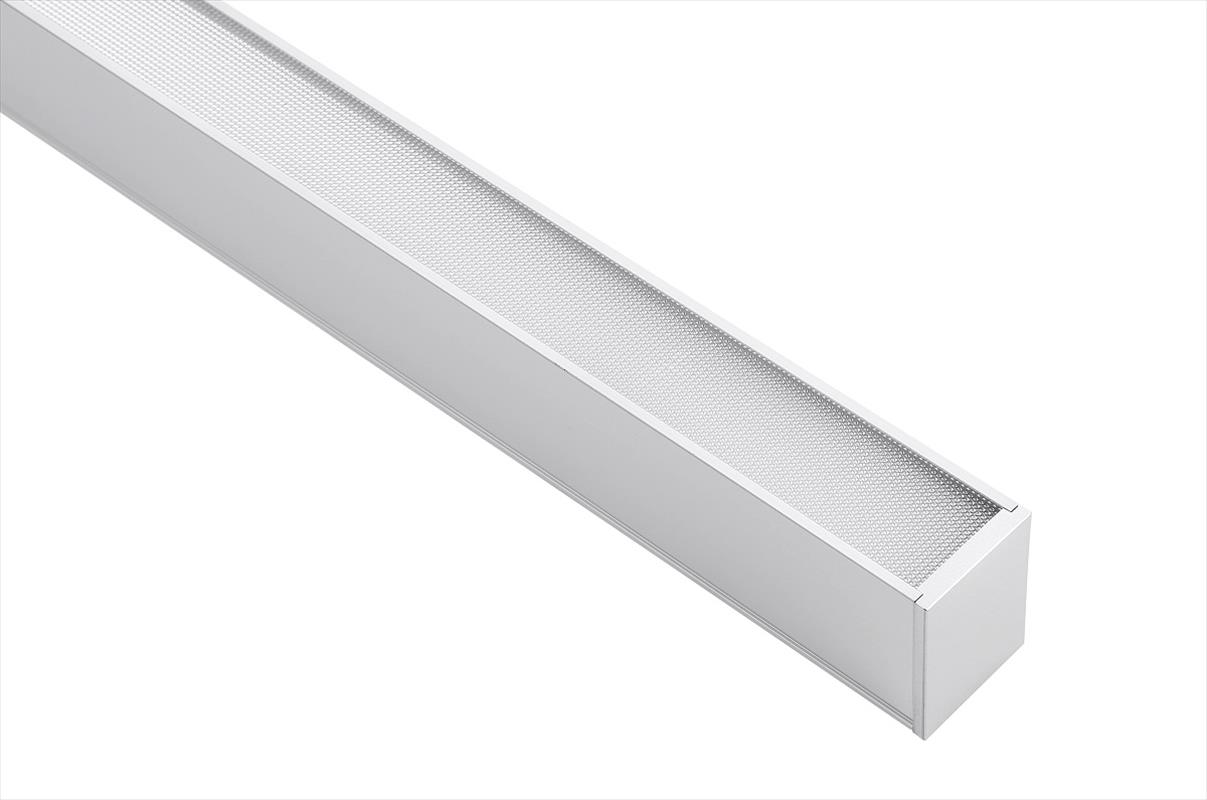

Wall-mounted Linear Lamp(LS5065-PZ)
Parameter:

Model: LS5065-PZ

Housing material: 6063-T5

Surface treatment: Anodizing, spraying

Lampshade: PS+PMMA

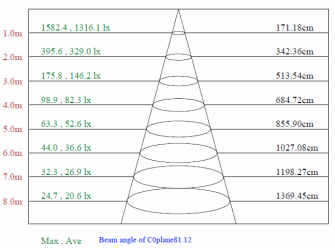

Luminous angle: 120°

Light source: SMD 2835

Light efficiency: 90Lm/W

CRI≥80

Color temperature: 2700-7000K

Input voltage: 100-277V/200-240V 50/60Hz

Power supply: Built-in efficient and safe flicker-free driver

Optional features: 0-10V dimming, DALI dimming, Color &

Brightness adjustable, Emergency lighting

Warranty: 5 years

Certificates: ENEC, CE, RoHS, FCC

Protection grade: IP20

Electrical grade: I

Standard Specification

Item No.            Power        Color Temp            L*W*H

5065LS20W06-PZ        20W          2700K~7000K           605*50*65mm

5065LS40W12-PZ        40W          2700K~7000K           1200*50*65mm

5065LS60W18-PZ        60W          2700K~7000K           1795*50*65mm

5065LS80W24-PZ        80W          2700K~7000K           2390*50*65mm


image.png  image.png
