Wall-mounted Linear Lamp(LH3570-FZ)
Parameter:

Model: LH3570-FZ

Housing material: 6063-T5

Surface treatment: Anodizing, spraying

Lampshade: PC

Luminous angle: 120°/120°+12°,34°,48°

Light source: SMD2835+3030

Light efficiency: 90Lm/W

CRI≥80

Color temperature: 2700-7000K

Input voltage: 100-277V/200-240V 50/60Hz

Power supply: Built-in efficient and safe flicker-free driver

Optional features: 0-10V dimming, DALI dimming

Warranty: 5 years

Certificates: ENEC, CE, RoHS, FCC

Protection grade: IP20

Electrical grade: I

Standard Specification

Item No.            Power        Color Temp            L*W*H

3570LH20W06-FZ        20W          2700K~7000K           608*35*70mm

3570LH40W12-FZ        40W          2700K~7000K           1200*35*70mm

3570LH60W18-FZ        60W          2700K~7000K           1836*35*70mm

3570LH80W24-FZ        80W          2700K~7000K           2384*35*70mm

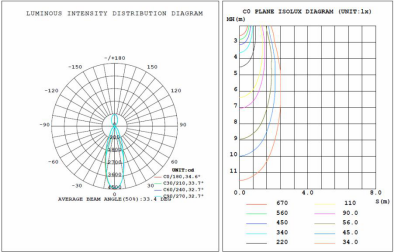

image.png  image.png
