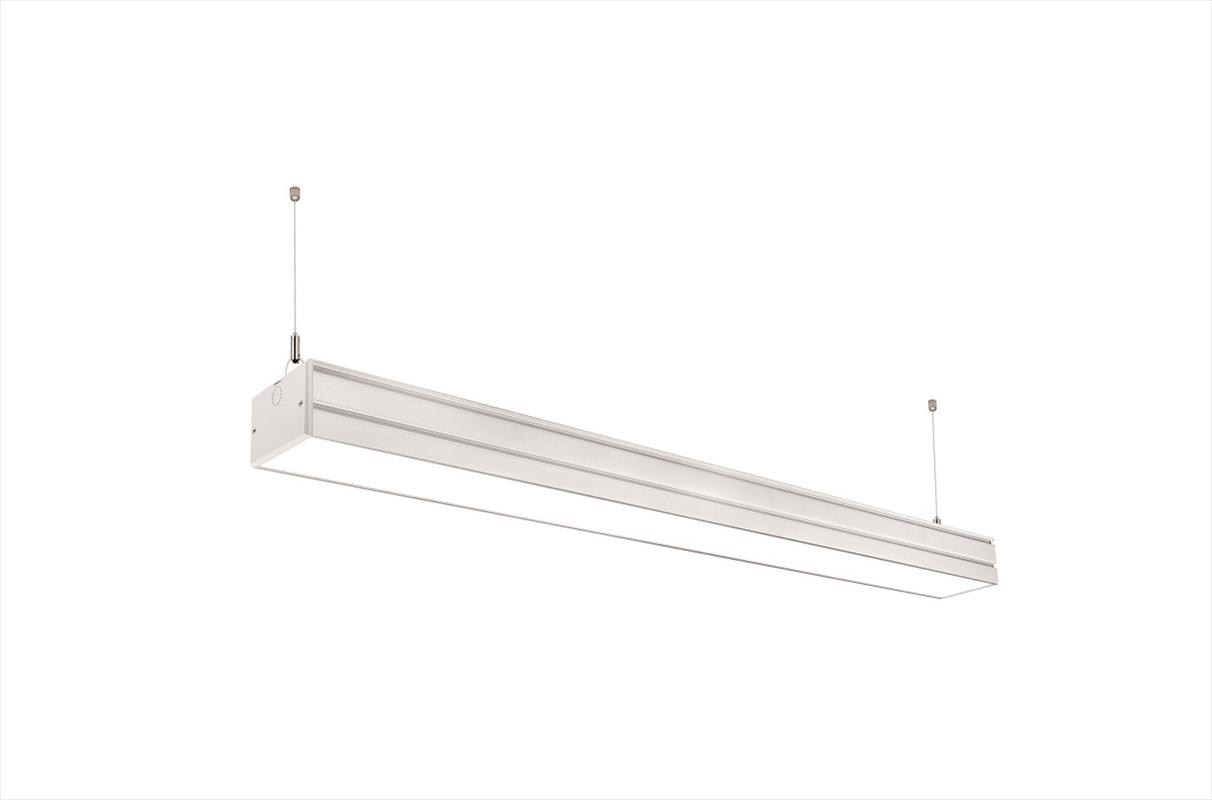

Suspended linear light(LS10064-PZ)
Parameter:

Model: LS10064-PZ

Housing material: 6063-T5

Surface treatment: Anodizing, spraying

Lampshade: PS

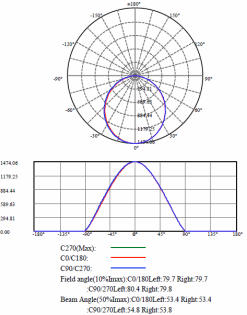

Luminous angle: 120°

Light source: SMD2835

Light efficiency: 90Lm/W

CRI≥80

Color temperature: 2700-7000K

Input voltage: 100-277V/200-240V 50/60Hz

Power supply: Built-in efficient and safe flicker-free driver

Optional features: 0-10V dimming, DALI dimming, Color &

Brightness adjustable, Emergency lighting.

Warranty: 5 years

Certificates: ENEC, CE, RoHS, FCC

Protection grade: Ip20

Electrical grade: I

Standard Specification

Item No.            Pow         Color Temp            L*W*H

10064LS20W06-PZ       20W         2700K~7000K           605*100*64mm

10064LS40W12-PZ       40W         2700K~7000K           1200*100*64mm

10064LS60W18-PZ       60W         2700K~7000K           1795*100*64mm

10064LS80W24-PZ       80W         2700K~7000K           2390*100*64mm


image.png  image.png
